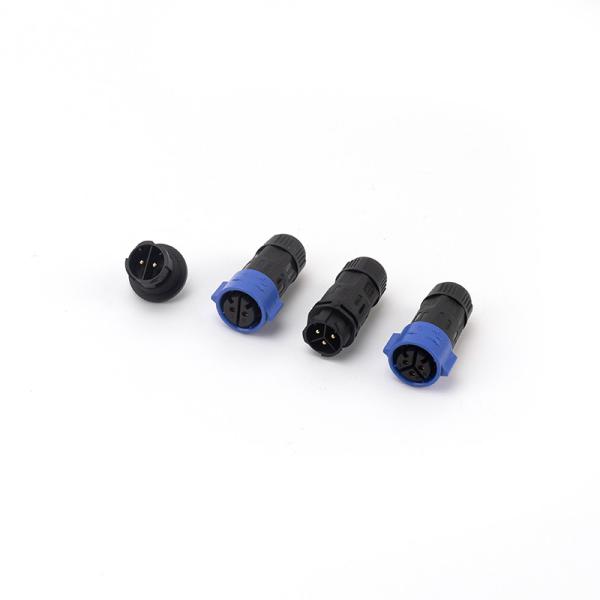

Forward Male Female M25 LED Plug IP67 Self-locking Power Waterproof Black PA66 Connector
Product Description:
| Model | M25 |
| Connector Body | Nylon(PA 66)+GF UL94V-0 1/16'' |
| Sealing | Silica Gel |
| Contact | Brass with gold plated |
| Mating Style | Push lock |
| Temperature | -40°C~+105°C |
| Current Rating | 35A |
| Voltage Rating | 300V |
| Contact resistance | <=10mΩ at DC500V |
| Contact material | Gold-plated copper |
| Breakdown | 1.5KV/1 minute |
| Durability | 8000 Times |
| Contacts | 2, 3, 4, 5 |
Features:
1) 2pin to 28pin available.
2) Rated current: 5A~50A.
3) Waterproof level: IP67
4) Certification: ISO9001, CE, UL, ROHS, CCC, TUV.
5) Any length of the cable is available with terminal processing.
6) Your drawings and samples are warmly welcomed since our professional R&D team could help to customize the items you need.
7) Application range: Led display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.
Technical Parameters:
| Place of Origin | China |
| | Guangdong |
| Brand Name | Forward |
| Model Series | M25 |
| Category | Molded |
| PIN | 2-8PIN |
| Housing oode | 2+1+5/2+0+5/2+1+3/2+3/2+02+4 connector |
| Cable Length | Standard 0.5M:Can be Customized |
| Contact material | Brass plated with 3U pure gold |
| Production Processing | Precision Injection molding |
| Waterproof | IP67 |
| Flame retardant standard | UL94-V0 |
| Other protection | Dustproof,Moistureproof,Antivibration,Hiah temperatureandOil Corrosion resistance |
| Application | Flectric vehice/motorcclenew energvehide. ithium battery. eneray storagephotowoltaic, Power Exchange station,charging post,etc. |
| Sustained current | 20-50A |
Applications:
• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
• Protect from dust and water during immersion, resistant to many oils and chemicals.
• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.
• Ip67 Ip68 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation
application.
• 100% new material, high-quality parts, strictly QC standard according to international customers.
Our Certifications:
All of our waterproof line waterproof connector terminal line LED light string various wire certification. We are a service provider with numerous certification and professional design solutions. Thank you very much for your recognition of our company. Any of our products are free samples, I look forward to your address.
Packing and Shipping:
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
FAQ:
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 20 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
